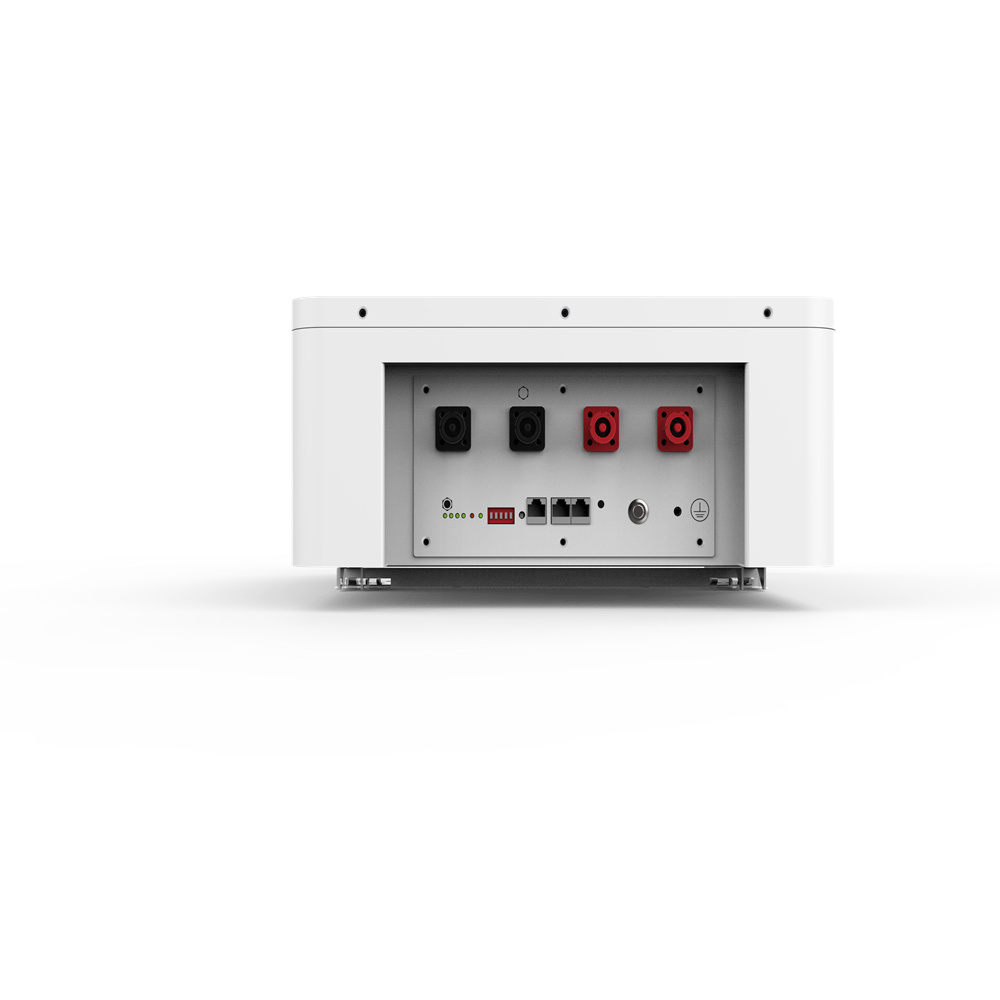

51.2V 48V Solar LiFePO4 Battery 5kWh Home Battery Storage Energy Power Wall Mounted

Share to:

Availability:

Quantity:



Inquire Add to Basket

Product Description

Model	JN-POWER-5kW	JN-POWER-10kW	JN-POWER-15kW	JN- POWER-20kW	JN- POWER-25kW
Enclosure protection rating	IP64	IP64	IP64	IP64	IP64
Nominal Voltage	48V (51.2V)	48V (51.2V)	48V (51.2V)	48V (51.2V)	48V (51.2V)
Working Voltage Range	42V-56.25V	42V-56.25V	42V-56.25V	42V-56.25V	42V-56.25V
Nominal Capacity	100Ah	200Ah	300Ah	400Ah	500Ah
Nominal Energy	5kWh	10kWh	15kWh	20kWh	25kWh
Batetry Type	LiFePO4 (Lithium Iron Phosphate)	LiFePO5 (Lithium Iron Phosphate)	LiFePO6 (Lithium Iron Phosphate)	LiFePO7 (Lithium Iron Phosphate)	LiFePO8 (Lithium Iron Phosphate)
BMS	Built-in BMS	Built-in BMS	Built-in BMS	Built-in BMS	Built-in BMS
Cycle Life	>6000 cycles @ 0.1C 50% DOD	>6000 cycles @ 0.1C 50% DOD	>6000 cycles @ 0.1C 50% DOD	>6000 cycles @ 0.1C 50% DOD	>6000 cycles @ 0.1C 50% DOD
Cell weight	123lb/55kg	243lb/110kg	357lb/165KG	606lb/275KG	728lb/330KG
Dimension(LWH)cm	60240320cm	60240340cm	60240360cm	60240380cm	602403100cm
Parallel function	48v support at most 15 packs in parallel use(Capacity is 75kWh)	48v support at most 15 packs in parallel use(Capacity is 75kWh)	48v support at most 15 packs in parallel use(Capacity is 75kWh)	48v support at most 15 packs in parallel use(Capacity is 75kWh)	48v support at most 15 packs in parallel use(Capacity is 75kWh)
Nominal Power	5kW	10kW	15kW	20kW	25kW
Max. Power	5000W	5000W	5000W	5000W	5000W
Rated Voltage	230V	230V	230V	230V	230V
Max. AC Current	21.7A	21.7A	21.7A	21.7A	21.7A
Operating temperature range	0℃～55℃	0℃～55℃	0℃～55℃	0℃～55℃	0℃～55℃
Storage Temperature range	0~40ºC	0~40ºC	0~40ºC	0~40ºC	0~40ºC
Charge Temperature range	0~45ºC	0~45ºC	0~45ºC	0~45ºC	0~45ºC
Discharge Temperature range	-20~60ºC	-20~60ºC	-20~60ºC	-20~60ºC	-20~60ºC
Certification:	CE/UN38.3/MSDS	CE/UN38.3/MSDS	CE/UN38.3/MSDS	CE/UN38.3/MSDS	CE/UN38.3/MSDS
