102.4V 10.6kWh High Voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery


Share to:
This product is composed of high quality lithium iron phosphate core (series-parallel connection) and advanced BMS management system. It can be used as independent DC power supply or as "basic unit" to form a variety of energy storage lithium battery power supply systems. It has high reliability and long life. Products developed for applications such as off-grid energy storage, on-grid energy storage, industrial and commercial energy storage, home energy storage, etc.

102.4V 10.6kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery

This Home storage energy solar battery, developed with their own lithium iron phosphate cell to ensure the highest safety value and most promising life cycle. A self designed BMS protects the cell from abnormal temperature, current, voltage, SoC and SoH.  The Helios5000H is a 102.4V battery,This home battery is modular with 5.3kWh increments, providing a capacity range of 10.6-31.9 kWh,providing a voltage range of 204.8V-614.4V. It can be used to support reliable power for various types of equipment and systems.

Features and benefits

1.Vertical industry integration ensures cycle life of 6000 cycles

2.Compatible with both new installations and retrofits (AC- or DC-coupled)

3.Modular design gives the end customers the power of choice of capacity

4.Compatible with large number of Hybrid inverters

5.Simple buckle fixing minimize the installation time and cost

6.Provides pre-charge function to protect ESS system from

   surge current. Up to 6 units can be stacked in series.

7.Compact and fashionable design fits in your home environmentx

8.Comes with a 5-year warranty extendable

Battery Module Helios5000H (5.3 KWh, 102.4 V)
Number of Modules 2 3 4 5 6
Usable Energy 10.6 KWh 15.9 KWh 21.2 KWh 26.6 KWh 31.9 KWh
Max Output Current 50 A 50 A 50 A 50 A 50A
Nominal Voltage 204.8 V 307.2 V 409.6 V 512 V 614.4 V
Operating Voltage 160~233.6 V 240-350.4 V 320~467.2 V 400~584 V 480~700.8 V
Dimensions (H/W/D) 580*600*420 mm 740*600*420 mm 900*600*420 mm 1060*600*420 mm 1220*600*420 mm
Weight(KG) 134 kg 185.5 kg 237 kg 288.5 kg 340 kg

59_High voltage battery (8)

827_High voltage battery (9)

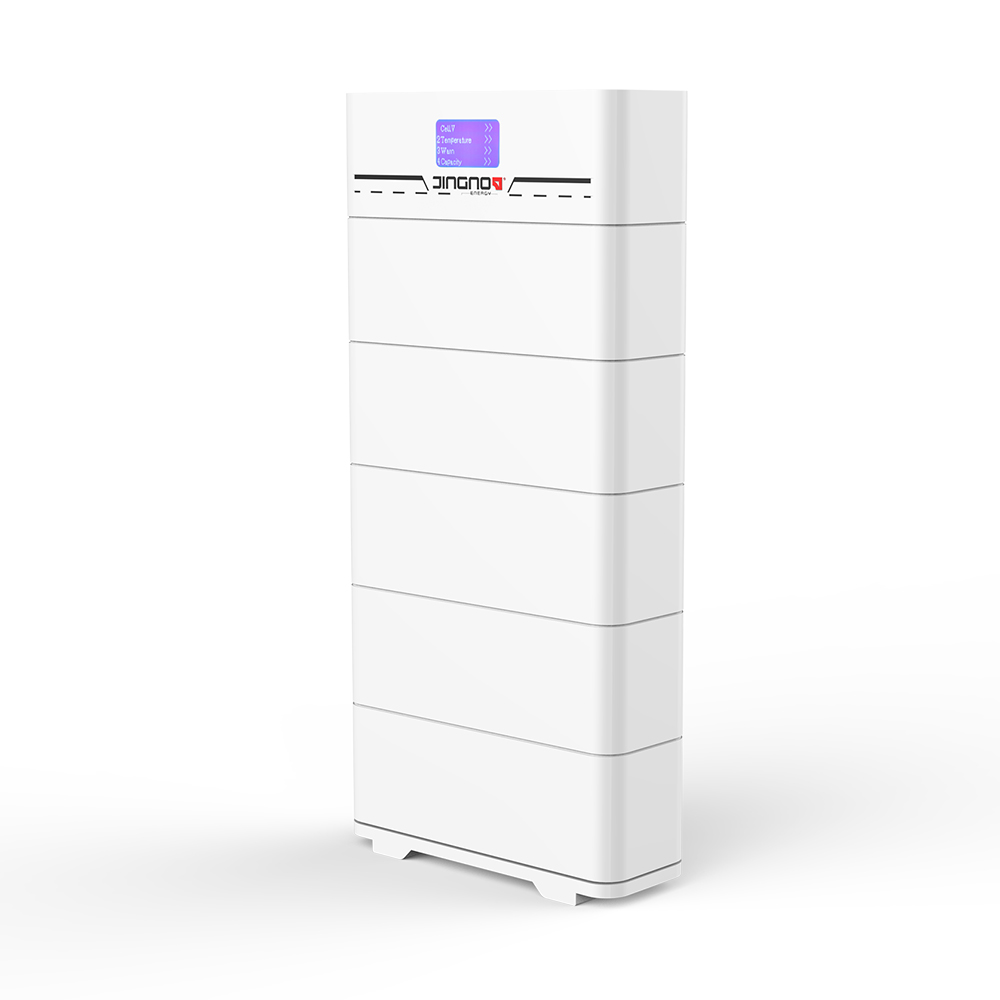

562_High voltage battery (10)
